• Monitor for viewing live video of the situation outside.
• Unlocking the electric lock on recognizing the visitor

Specification:

• Type of file - Photo JPEG Music: MP3 File: MPEG1/ MPEG2 / MPEG4/AV1
• External Dimension – 236 (L) x 169(W) x 29 (H)

Out Door Unit:

• Loudspeaker – Makes the users voice audible to the visitor
• Camera – Captures image of the visitor
• Infrared LED – Ensures clear Vision during night time
• Call Button – To generate a bell sound inside the house and activate the camera
• Microphone – Captures voice of the visitor

Specification:

External Dimension – 160 (L) x 68(W) x 39 (H)

Features:

• Rated Voltage; DC 12V (Supplied to Monitor)
• Wiring: 4Wires (Polarity) to a monitor   2 Wires (non-polarity) to a electric door lock
• Sensor Type: CMOS IMAGE SENSOR
• Transmission: Full duplex
• Color Television: NTSC STANDARD
• Minimum Illumination: 0.1 Lux (within 300mm)
• LED: Embedded white LED (night working)
• Effective Viewing Angle: Horizontal 75, Vertical 55
• Angle Adjustment: Upward 13
• Operating temperature: -10C ~ + 40C
• Weight (g): 300g
• Dimension (mm): 101(W) x 142(H) x 32(D)
• Installation between a door camera and a monitor (TIV Cable): Diameter(pie) 0.5 0.65 0.8 1    Distance(meter) 28m 50m 70m 115m

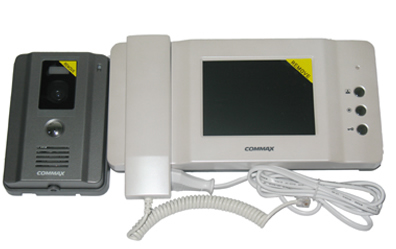

Specifications:

• Rated Voltage: AC100~240V, 50/60Hz
• Power Consumption: Operating: 16W (Max.)
• Wiring: 4 Wries with a door camera (Polarity)   4 Wires with an interphone (Polarity)
• Screen Size: Color 5" TFT LCD
• Transmission Way: full Duplex (Handset)
• Call Sound: From a door Camera: Electric chime, From an interphone: "Beep"
• On-Screen Duration: 90 + 20sec
• Distance from Camera: 28m(0.5) / 50m(0.65) / 70m(0.8) 115m(01)
• Operating Temperature: 0~ + 40C (32F ~104F)
• Weight: 2Kg
• Dimension (mm): 258(W) x 159(H) x 51(D)

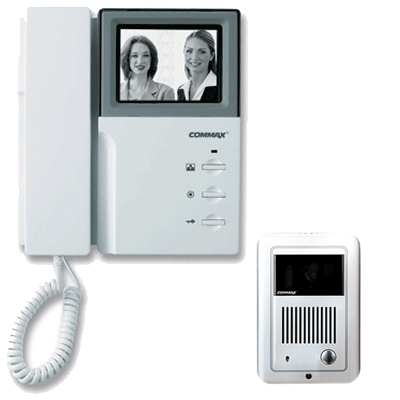

Indoor Unit:

• High Resolution Display(4 inch B/W Flat CRT)
• Talk : Full-Duplex
• Talk with the Entrance
• Door Release
• Talk   : Full-Duplex
• System Capacity  : 1 x Entrance, 1 x Sub-phone, Image Memory Unit Connectable (Optional)
• Power Consumption  : 21W
• Dimensions  : 188(W) x 208(H) x 56(D)mm
• Power Supply  : AC 100~240V

Outdoor Unit:

• Image Device : B/W C.C.D 1/3 inch
• Min. Illumination : 0 Lux (300mm from Camera)
• Operating Ambient Temperature : -10°C~+50°C
• Cable condition  : 50m for 0.65mm, 100m for 0.65mm coaxial cable
• Commax door camera provides you with the best convenience where you stay or various place you install it.
• Wiring  : 4-Wire
• Angular Field of View Lens  Horizontal : 95° Vertical : 70°
• Scanning Frequency  H : 15.734KHz/15.625KHz (for EIA, NTSC), V : 60Hz/50Hz (CCIR,PAL)
• Dimensions :  99(W) x 165(H) x 40(D)mm
